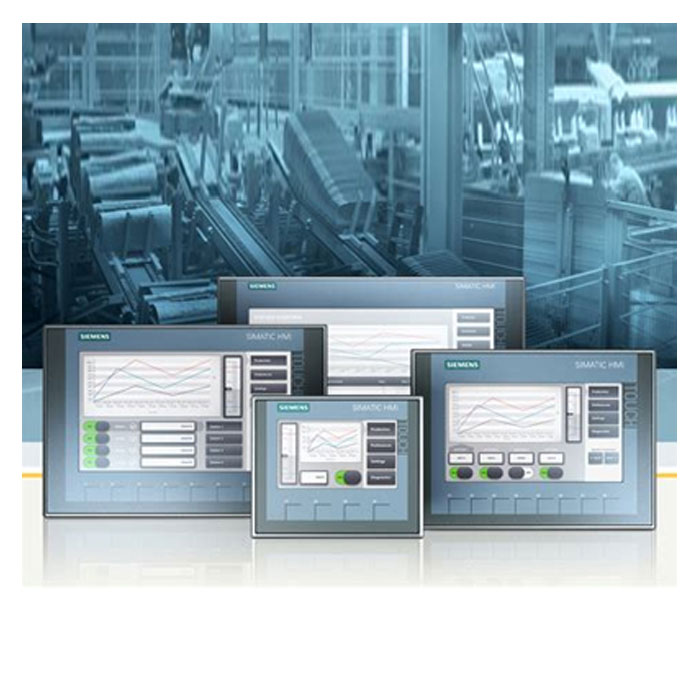

SIMATIC BASIC SECOND GENERATION

Cost-efficient, high-resolution visualization solutions

Improved process quality

Visualization allows for considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATIC HMI Basic Panels 2nd Generation thus open up completely new possibilities in terms of operation and monitoring also in the field of mechanical engineering at a particularly attractive price.

High-resolution wide-screen displays

SIMATIC HMI Basic Panels 2nd Generation are available with high-resolution wide-screen displays from 4“ to 12“. These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The display’s brightness is dimmable up to 100 %, offering optimum flexibility.

Highlights
  • Ideal entry-level range for simple HMI applications
  • Installation compatibility with SIMATIC HMI Comfort Panels and existing SIMATIC HMI Basic Panels 4“ and 6“
  • Flexible scalability within the HMI range
  • High-resolution, dimmable wide-screen displays with 64.000 colors
  • Innovative user interface and improved usability thanks to new controls and graphics
  • Touch / key functionality for intuitive operation
  • Interface for connection with various PLCs
  • Versions for PROFIBUS or PROFINET
  • Archiving via USB stick
  • Engineered in the TIA Portal
