GT25 Open Frame Model
GT25 Open Frame Model
| Item | Specifications |
|---|---|
| Display | 8.4″/10.4″/12.1″, TFT color LCD, 65536 colors |
| Resolution | SVGA, VGA |
| Backlight | White LED |
| User memory | Memory for storage (ROM): 32 MB Memory for operation (RAM): 80 MB |
| Standard interface | Ethernet, RS-232, RS-422/485 USB host (USB-A): 1 channel (USB 2.0 (High-Speed 480 Mbps)) USB device (USB Mini-B): 1 channel (USB 2.0 (High-Speed 480 Mbps)) SD memory card interface |
| Extension interface | CC-Link IE TSN [NEW], CC-Link IE Control, CC-Link IE Field, CC-Link, bus, MELSECNET/H |
| Side interface | For installing a wireless LAN communication unit |

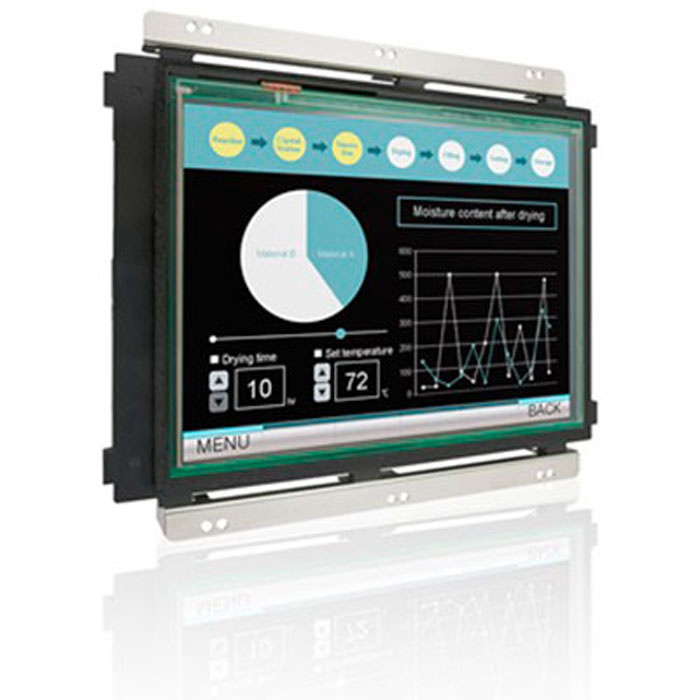

GT25 open frame model external appearance [front face/rear face]
