GT27 Model
GT27 Model
Communication interfaces such as Ethernet, RS-232, RS-422/485, USB host/device and SD memory card are standard features. High capacity data processing ensure smooth screen operation even when multiple tasks, such as logging, script, alarm, or device data transfer, are running. In addition, image recording, image playback, video image input, and RGB output are available*, thus all the functions of GOT2000 can be used on GT27 models.
| Item | Specifications |
|---|---|
| Display | 5.7″/8.4″/10.4″/12.1″/15″, TFT color LCD, 65536 colors |
| Resolution | XGA, SVGA, VGA |
| Backlight | White LED |
| User memory | Memory for storage (ROM): 57 MB (GT2705 has 32 MB) Memory for operation (RAM): 256 MB*1 [NEW] (GT2705 has 80 MB) |
| Standard interface | Ethernet, RS-232, RS-422/485 USB host (USB-A): 2 channels*2 (USB 2.0 (High-Speed 480 Mbps)) USB device (USB Mini-B): 1 channel (USB 2.0 (High-Speed 480 Mbps)) SD memory card interface |
| Extension interface | CC-Link IE TSN, CC-Link IE Control, CC-Link IE Field, CC-Link, bus, MELSECNET/H |
| Side interface | For installing a wireless LAN communication unit |

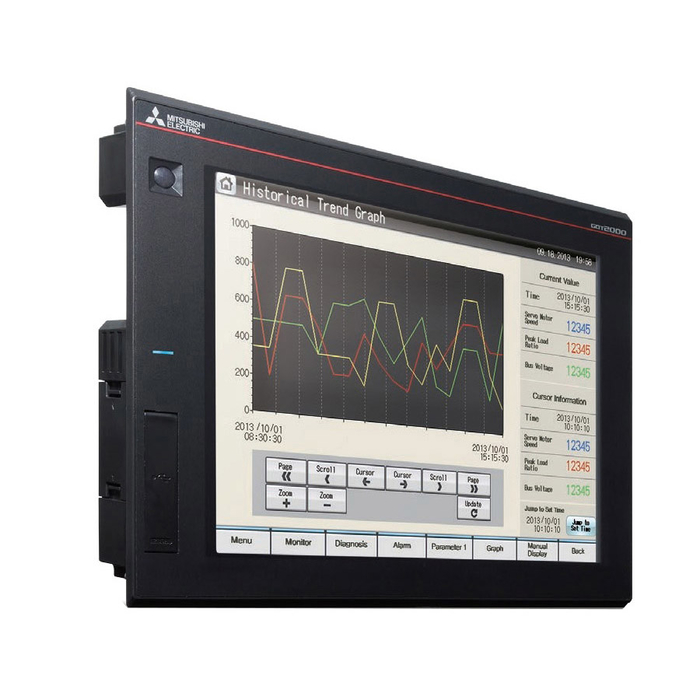

GT27 model external appearance [Standard model: front face/rear face]
